This post would be about what I have learned during my sixth week of Software Portability and Optimization (SPO600) class.

SVE / SVE2

SVE2 is specifically designed to eliminate the need for a range of different SIMD implementations for different vector register widths.

SVE and SVE2 use vector and predicate registers:

• The vector registers used z, i.e. z1.h.
• The predicate register used p, i.e. p6

The variations within system architectures are called micro-architectural versions.

Micro-architectural Variations

1. Implementation Variations
• in-order vs out-of-order execution.
• May affect performance but doesn't affect which instructions can be executed.
• do not cause code compatibility issues.
2. Feature Variations
• adding registers, or new instructions.
• Change which instructions can be executed.
• Introduce code compatibility issues.

There are many SIMD implementations to use and it is difficult for programmers to decide which one to target. The possible solution for this is:

1. Library Multi-Versioning (LMV)
• Providing multiple binaries and libraries.
• The file is selected at run-time by the operating system.
• Example: GCC HWCAPS Project.
• libraries and binaries are built multiple times for various microarchitectural levels.
• The system selects the best version supported by the current hardware.
• Advantage: Entirely handled by the build system / no code changes.
• Disadvantage: Creates a lot of duplication.
2. Function Multi-Versioning (FMV)
• Multiple versions of code exist within the binaries and libraries.
• The code path is selected at run-time by a resolver function.
• Example: GCC/glibc iFunc.
• Multiple versions of functions.

• Resolver functions select function versions at runtime.
• Advantage: Can be strategically applied; causes much less duplication.
• Disadvantage: Requires code changes.

Now accessing our servers and the code used during class:

ll /public/spo600-sve-sve2-ifunc-examples.tgz

tar xvf /public/spo600-sve-sve2-ifunc-examples.tgz

Now I have the autoifunc and sve2-test available:


cd sve2-test

make clean

vi Makefile

Notice that the compiler flag has the -g option and optimization to level 3.

-march=armv8-a+sve2 - specifying an architecture.

If you remember, our machine does not have SVE and SVE2 capabilities but, we can use emulation to kind of do the job we want using qemu-aarch64.

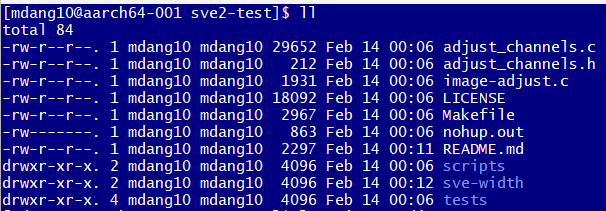

In the sve2-test folder, these are the files that are available:

Let's look at the image-adjust.c file which allows us to specify a graphic image and brighten or dim the RBG channel individually:

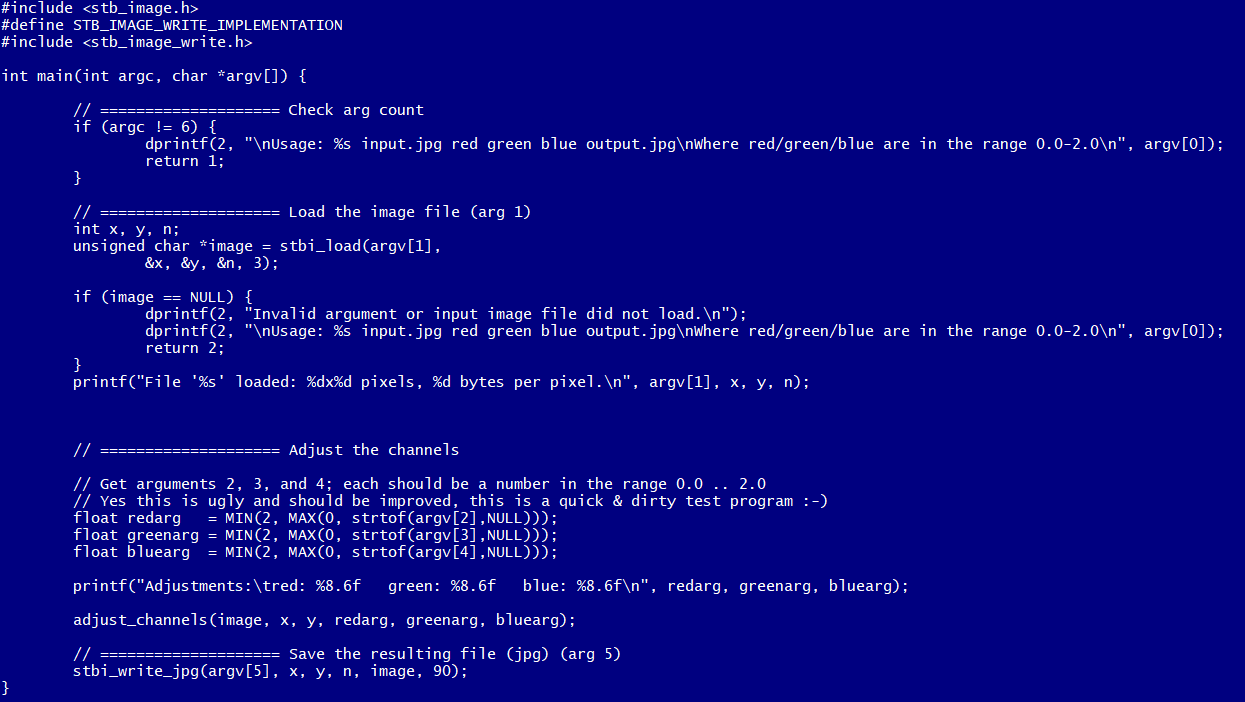

less image-adjust.c

The heavy lifting is done by the adjust_channels.c which has 4 separate implementations of the same function.

The implementation is selected by the compiler directives that look like the following:

To build this:

make -j17


To display the cat bree:

cd tests/input

display bree.jpg

In the scripts subdirectory:

ll scripts

To show all the cat montage results:

scripts/show_montage

However, in my case I cannot see the image of a cat, since the aarch64 machine that is currently in used does not have SVE and SVE2 capability, therefore I am getting this instead:

From the recorded lecture:

cat /etc/fedora-release

cat /proc/cpuinfo

Notice that each core has an asimd flag, meaning that it has the advanced SIMD capability.

To look at the CPU part fields:

grep "CPU part" /proc/cpuinfo

Notice that each of the CPU part fields indicates the same value.

The other machine that has SVE and SVE2 capabilities, has 9 processors, where each core supports asimd, sve, and sve2. Then if we look at the CPU part fields. Four of them have a value, another 4 have a different value, and one has a third value.

When running ./sve-width-instrinsics in the aarch64 server provided by the instructor, it would not work since there is no SVE and SVE2 capabilities. However, it would work properly in a machine that has SVE and SVE2 pcapability.

Now looking at the dummy iFunc implementation:



cd ~/ifunc

make

./ifunc-test


To see how this iFunc capability could be automatically applied to some code:


cd ~/autoifunc

vi function.c

scripts/autoifunc function.c



vi function_ifunc.c

make clean

make


make all-test

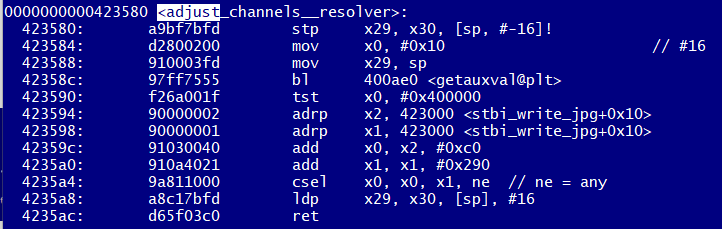

objdump -d main | less
